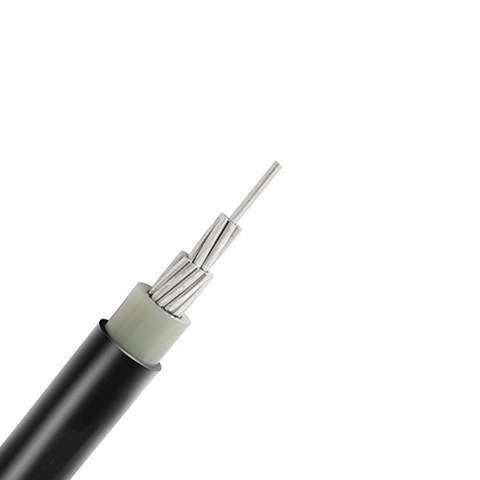

Service Drop Aluminum Overhead Cable

Properties of Service Drop Aluminum Overhead Cable:

1)The highest allowed operating temperature of conductor for long-term working is 90 degrees;

2)The installation temperature of cable should be not less than -20;

3)When overall diameter of cable(D) is less than 25mm,permissive bending radius of cable should be not

less than 4D,When overall diameter(D) of cable is equal to and above 25mm, permissive bending radius

of cable should be not less than 6D.

Standard:  ASTM B-230,B-231,B-232 and B-399IEC S-76-474

Construction of Service Drop Aluminum Overhead Cable:

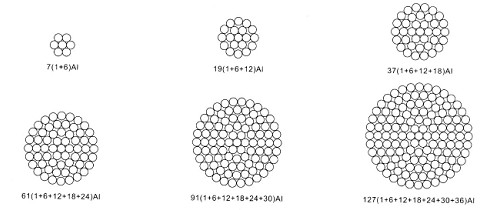

Conductors are concentrically stranded ,compressed 1350-H19aluminum,insulated with either

polyethylene(PE) or crosslinked polyethylene(XLPE).The neutral messengers are concentrically stranded

AAC, ACSR, or 6201 aluminum alloy.ABC cable can be made 1 core, 2cores, 3cores, 4cores and so on.

Specification of Service Drop Aluminum Overhead Cable:

Code name	Phase conductor			Bare neutral messenger			Weight per 1000 ft(lbs)		Rating(Amps)
	Size AWG	Strand	Insulation thickness (mls)	Size AWG	Strand	Breaking strength (lbs)	XLP	POLY	XLP	POLY
AAC NEUTRAL-MESSNGER
Clydesdale	4	Solid	45	4	7	881	208	201.8	100	80
Pinto	4	7/w	45	4	7	881	223	207.9	100	80
Mustang	2	7/w	45	2	7	1,350	333	312.6	135	105
Criollo	1/0	19/w	60	1/0	7	1,990	529	504.5	180	140
Percheron	2/0	19/w	60	2/0	7	2,510	649	620.5	205	160
Hanoverian	3/0	19/w	60	3/0	19	3,310	799	765.6	235	185
Oldenburg	4/0	19/w	60	4/0	19	4,020	986	946.7	275	210
Lippizaner	336.4	19/w	80	336.4	19	6,146	1,546	1,519.2	370	280
ACSR NEUTRAL-MESSNGER
Morochuca	6	Solid	45	6	6/1	1,190	152	147.4	75	60
Chola	6	7/w	45	6	6/1	1,190	162	151.7	75	60
Morgan	4	Solid	45	4	6/1	1,860	226	220	100	80
Hackney	4	7/w	45	4	6/1	1,860	241	226.1	100	80
Palomino	2	7/w	45	2	6/1	2,850	362	342.6	135	105
Costena	1/0	19/w	60	1/0	6/1	4,380	575	550.6	180	140
Grullo	2/0	19/w	60	2/0	6/1	5,310	707	678.7	205	160
Suffolk	3/0	19/w	60	3/0	6/1	6,620	872	838.9	235	185
Appaloosa	4/0	19/w	60	4/0	6/1	8,350	1079	1039.2	275	210
Bronco	336.4	19/w	80	336.4	18/1	8,580	1613	1568.2	370	280
Gelding	336.4	19/w	80	4/0	6/1	8,350	1548	1494.3	370	280
6201 ALLOY NEUTRAL-MESSENGER
Bay	6	Solid	45	6	7	1,110	145	140.0	75	60
French Coach	6	7/w	45	6	7	1,110	155	144.3	75	60
German Coach	4	Solid	45	4	7	1,760	214	208.3	100	80
Arabian	4	7/w	45	4	7	1,760	229	214.4	100	80
Belgian	2	7/w	45	2	7	2,800	344	323.1	135	105
Shetland	1/0	19/w	60	1/0	7	4,460	546	521.1	180	140
Thoroughbred	2/0	19/w	60	2/0	7	5,390	670	641.5	205	160
Trotter	3/0	19/w	60	3/0	7	6,790	825	791.8	235	185
Walking	4/0	19/w	60	4/0	7	8,560	1019	979.7	275	210
