0.6/1kV ABC Cable 70mm2 NFC33-209 Standards

Introduction

Overhead insulated cables are composed of copper or aluminum conductors, inner shielding layer, weather-resistant insulating material and outer shielding layer. Aerial insulated cable have not only the power transmission characteristics of power cables, but also the strong mechanical characteristics of overhead cables. Compared with bare wires, overhead insulated cables have many advantages such as small laying span, high reliability, and good anti-aging performance. They are the types of cables that are actively selected for urban power project.

Executive standard

IEC60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV)
ABC Technical Characters Based on Standard NFC 33-209.

Application

The product is a new type of aerial cable for power transmission. It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting.

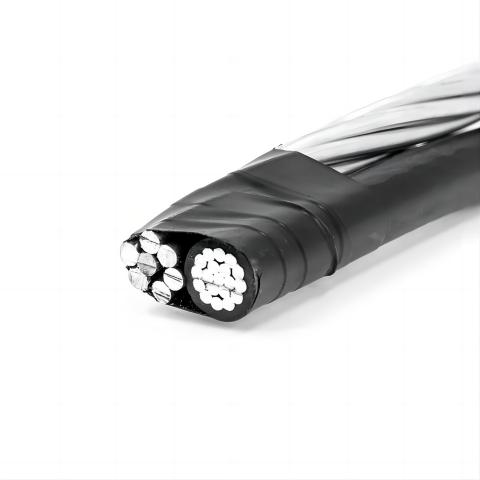

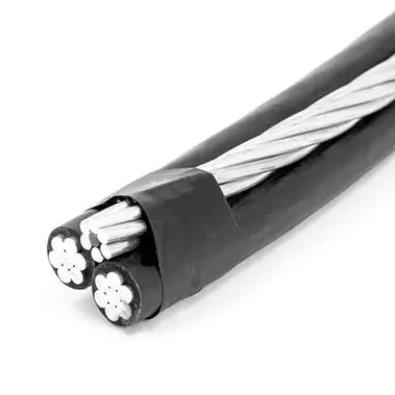

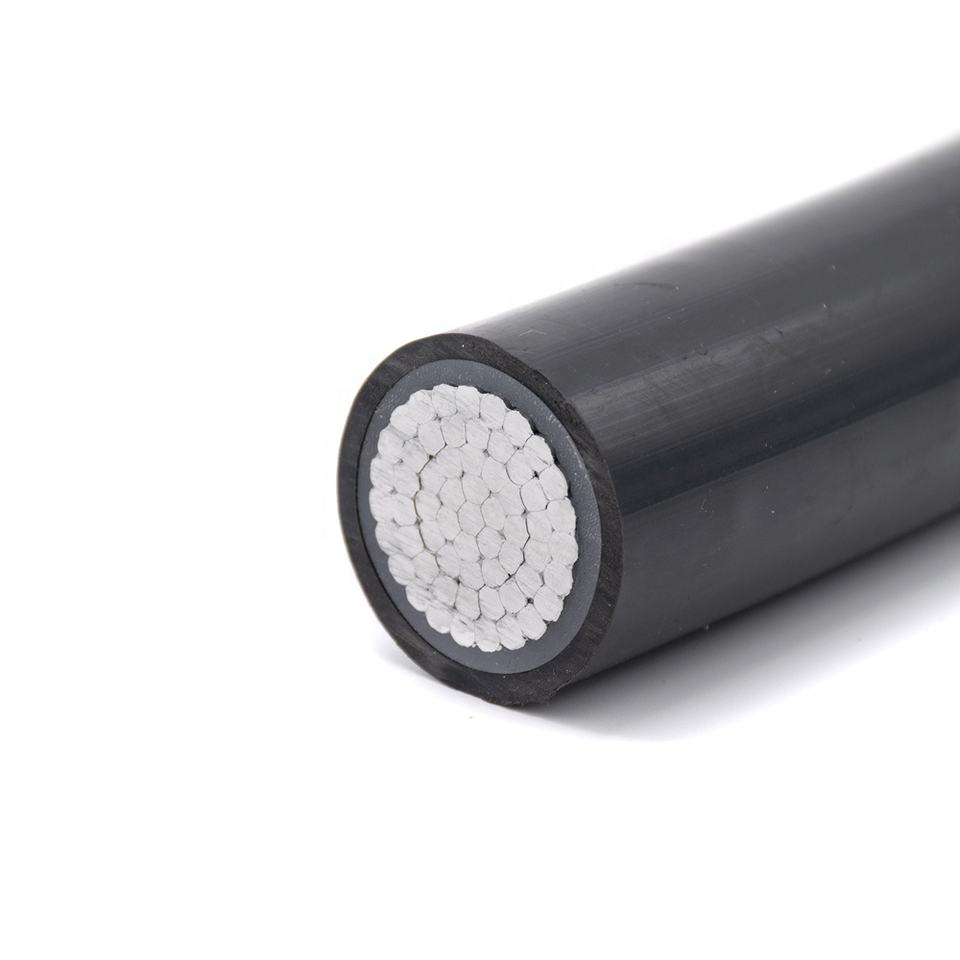

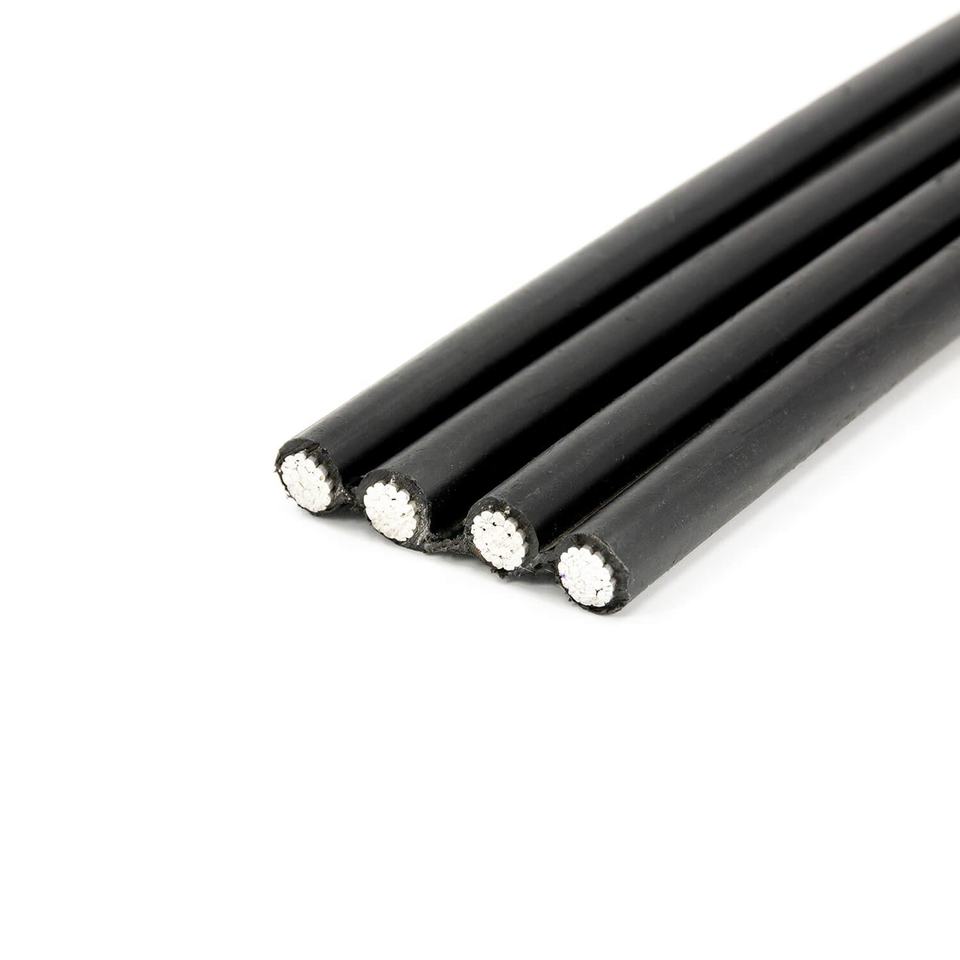

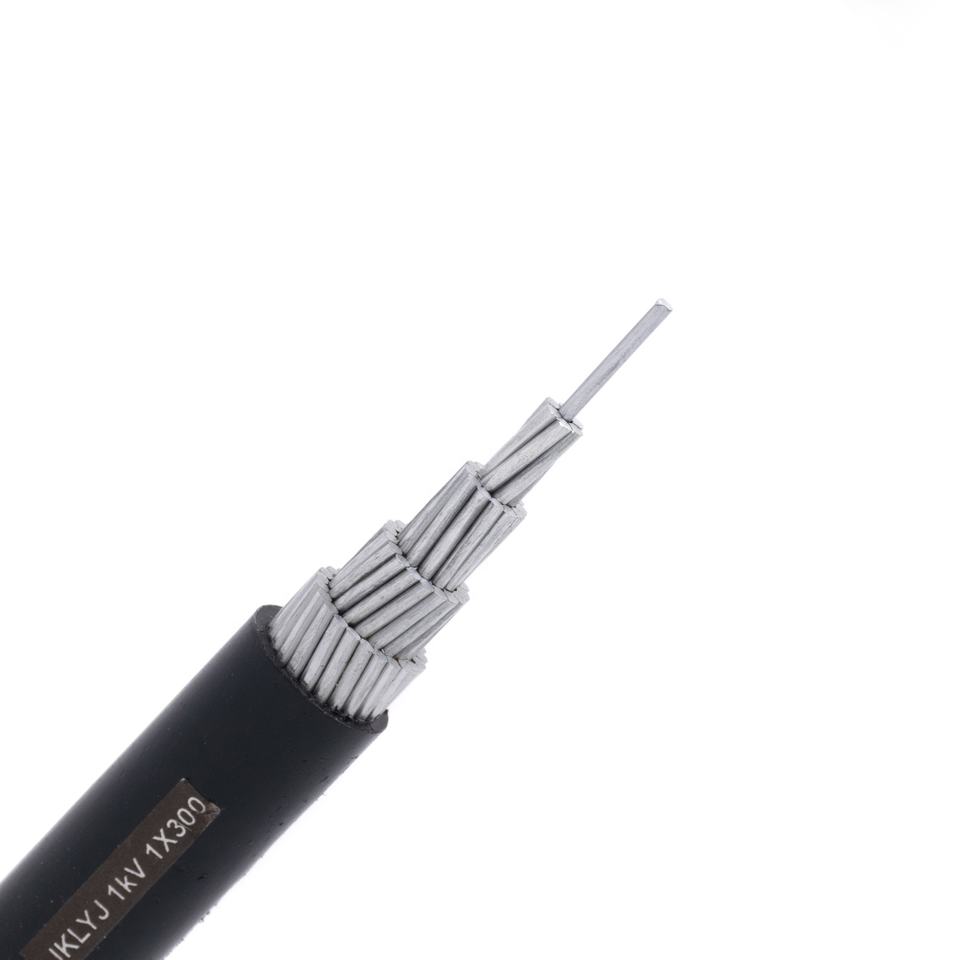

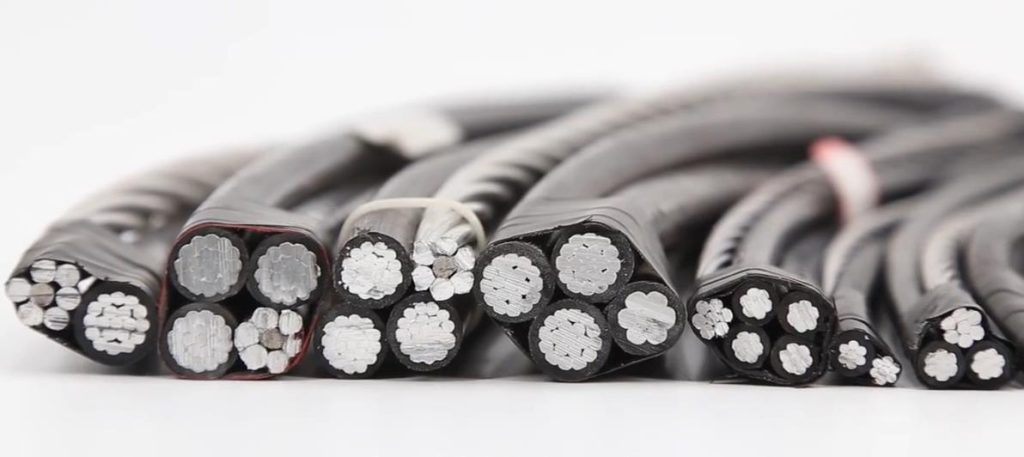

Cable Construction Description

Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC or ACSR.

ABC Technical Character Based on Standard NFC 33-209

DESCRIPTION		INSULATED PHASE CONDUCTORS					Average Insulation thickness
Type	Nominal cross-section area	Wire Number in the conductor	Max. Resistance at 20℃	Average diameter of conductor		Rated Strength
	mm2	Number	Ohm/km	Min mm	Max. mm	Min KN	mm
PHASE, NEUTRAL, and PUBLIC LIGHTING	16	7	1.910	4.6	5.1	1.9	1.2
	25	7	1.200	5.8	6.3	3.0	1.4
	35	7	0.868	6.8	7.3	-	1.6
	50	7	0.641	7.9	8.4	-	1.6
	70	12	0.443	9.7	10.2	-	1.8
	95	19	0.320	11.0	12.0	-	1.8
	120	19	0.253	12.0	13.1	-	1.8
	150	19	0.203	13.9	15.0	-	1.7
	54.6	7	0.630	9.2	9.6	16.6	1.6
PORTER	70	7	0.500	10.0	10.0	20.5	1.5
	95	19	0.343	12.2	12.2	27.5	1.6
