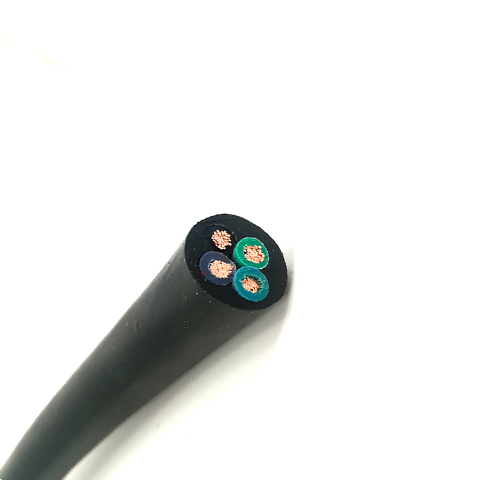

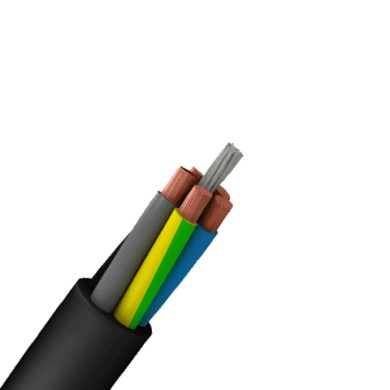

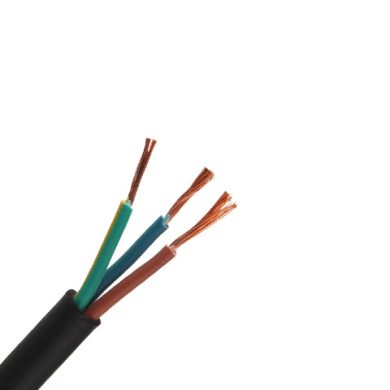

Heavy duty rubber sheathed flexible cable

Description of Heavy duty rubber sheathed flexible cable

Rated Temperature: -40℃ to 60℃

Rated Voltage: 450/750V

Reference Standard: IEC 60245/BS EN50525-2-21

Conductor: Shaped and circular stranded copper conductors

Insulated: Ethylene propylene rubber

Sheathed: Polychloroprene/chloroprene

‌Typical models‌: YC (general purpose), YCW (weather resistant), YCWF(enhanced oil resistance)‌

Mechanical strength: YC cable Heavy duty rubber sheathed flexible cable Can withstand frequent

bending, stretching and heavy crushing, suitable for high mechanical stress scenarios.

Heavy duty rubber sheathed flexible cables are widely used in scenarios requiring high mechanical

strength and environmental resistance.

Heavy duty rubber sheathed flexible cable Parameter

Only some parameters are shown

Cross-Sectional Area mm²	Thickness of Insulation mm	Thickness of Sheath mm	Overall Diameter mm		Approx Weight kg/km	Max.D.C resistance of at 20℃  Ω/km
			min	max
2×10	1.2	3.1	17.7	22.6	569	1.9
2×25	1.4	3.6	24.3	30.7	1211	0.78
2×95	1.8	5.0	40.2	51.0	3709	0.21
3×10	1.2	3.3	19.1	24.2	704	1.91
3×50	1.6	4.5	34.1	42.9	2646	0.4
3×120	1.8	5.6	47.3	60.0	5672	0.16
4×16	1.2	3.6	23.8	30.1	1287	1.21
4×25	1.4	4.1	28.9	36.6	1906	0.78
3×10+1×6	1.2/1.0	3.4	21.0	25.5	674	1.91/3.3
3×16+1×6	1.2/1.0	3.6	22.4	28.4	1111	1.21/3.3
3×25+1×6	1.4/1.2	4.1	27.3	34.5	1652	0.780/1.91
3×35+1×10	1.4/1.2	4.3	29.9	37.8	2026	0.554/1.91
...	...	...	...	...	...	...
4×120+1×35	1.8/1.4	6.7	54.9	69.0	7874	0.161/0.554
