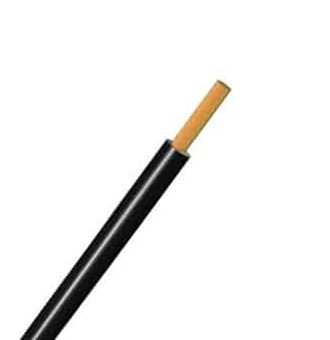

H05V-K/H07V flexible wire is a conductor with PVC insulation. The insulation is available in various colors and can be customized. If the color and size you need are not available on the page, please contact us.
Rated voltage： 300/500V, 450/750V
Conductor: IEC60228/BS 6360 Class 5, stranded, annealed copper wire
Insulation: PVC Compound
Insulation Color: Red, Yellow, Blue, Black, Green, White, Purple, Gray, Orange, Pink
Operating temperature: 0 to 70℃
Min bending radius: 6 x overall insulted diameter
Standard: IEC 60227 / BS 6004
Code:H05V-K/H07V-K
We supply these cables following the I IEC 60227 / BS 6004 with voltage 300/500V, 450/750V. If you have any questions, please feel free to contact us.
| Nominal Cross Section (mm2) | Conductor (Nos/mm) | Max Overall Diameter(mm) | Mass of wire (kg/km) | Maximum Conductor Resistance at20℃ (Mohm/Km) | Min. Conductor Resistance at 70℃ (Mohm/Km) |
| H05V-K | |||||
| 0.5 | 16/0.2 | 2.5 | 9.5 | 39.0 | 0.014 |
| 0.75 | 24/0.2 | 2.7 | 13.1 | 26.0 | 0.013 |
| 1.0 | 32/0.2 | 2.8 | 16.0 | 19.5 | 0.011 |
| H07V-K | |||||
| 1.5 | 30/0.25 | 3.4 | 21.3 | 13.3 | 0.01 |
| 2.5 | 49/0.25 | 4.1 | 32.5 | 7.98 | 0.009 |
| 4 | 56/0.3 | 4.8 | 48.6 | 4.95 | 0.007 |
| 6 | 84/0.3 | 5.3 | 69.3 | 3.30 | 0.006 |
| 10 | 84/0.4 | 6.8 | 117.8 | 1.91 | 0.0056 |
| 16 | 126/0.4 | 8.1 | 171.2 | 1.21 | 0.0046 |
| 25 | 196/0.4 | 10.2 | 268.8 | 0.780 | 0.0044 |
| 35 | 276/0.4 | 11.7 | 359.2 | 0.554 | 0.0038 |
| 50 | 296/0.4 | 13.9 | 505.3 | 0.386 | 0.0037 |
| 70 | 360/0.4 | 16.0 | 720.5 | 0.272 | 0.0032 |
H05V-K/H07V-K flexible wires are widely used in machinery manufacturing, chemical industry, electric power, transportation and instrumentation for control circuits, signal transmission and measurement.
