Rated voltage：450/750V
Conductor：Class 1 or 2, Annealed wire
Insulation：PVC Compound
Insulation Color：Red, yellow, blue, black, green, white, purple, gray, orange, pink
Operating temperature：0℃ to 70℃

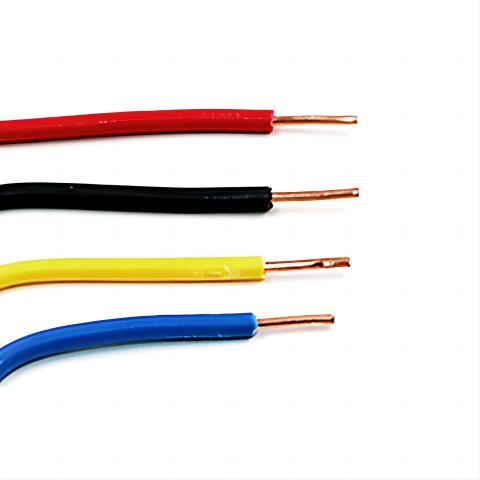

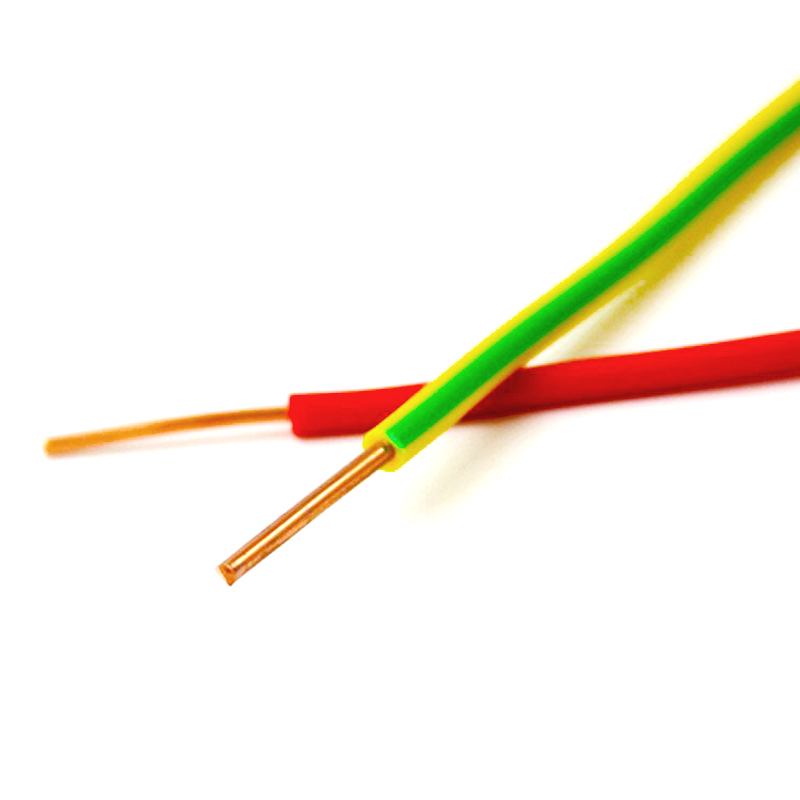

PVC insulated wires are used for electricity transmission for building, construction and lighting, which are fit for A.C. rated voltage 450/750V
BS 6004
IEC60227
Rated voltage：450/750V
Conductor：Class 1 or 2, Annealed wire
Insulation：PVC Compound
Insulation Color：Red, yellow, blue, black, green, white, purple, gray, orange, pink
Operating temperature：0℃ to 70℃
| Nominal Cross Section (mm2) | Class of Conductor | Conductor (Nos/mm) | Insulation Thickness (mm) | Max Overall Diameter (mm) | Mass of Wire (kg/km) | Max. Conductor Resistance at 20℃ (Ω/km) | Min. Insulation Resistance at 70℃ (Ω*km) |
| 1.0'* | 1 | 1/1.13 | 0.6 | 2.7 | 15 | 18.1 | 0.013 |
| 1.5"* | 1 | 1/1.38 | 0.7 | 3.2 | 21 | 12.1 | 0.011 |
| 1.5 | 2 | 7/0.53 | 0.7 | 3.3 | 22 | 12.1 | 0.01 |
| 2.5 | 1 | 1/1.78 | 0.8 | 3.9 | 32 | 7.41 | 0.01 |
| 2.5 | 2 | 7/0.67 | 0.8 | 4.0 | 34 | 7.41 | 0.009 |
| 4 | 2 | 1/2.23 | 0.8 | 4.4 | 49 | 4.61 | 0.0077 |
| 6 | 2 | 1/2.74 | 0.8 | 5.0 | 68 | 3.08 | 0.0065 |
| 10 | 2 | 7/1.35 | 1.0 | 6.7 | 115 | 1.83 | 0.0065 |
| 16 | 2 | 7/1.7 | 1.0 | 7.8 | 170 | 1.15 | 0.005 |
| 25 | 2 | 7/2.14 | 1.2 | 9.7 | 265 | 0.727 | 0.005 |
| 35 | 2 | 19/1.53 | 1.2 | 10.9 | 360 | 0.524 | 0.0043 |
| 50 | 2 | 19/1.78 | 1.4 | 12.8 | 490 | 0.387 | 0.0043 |
| 70 | 2 | 19/2.14 | 1.4 | 14.6 | 690 | 0.268 | 0.0035 |
| 95 | 2 | 19/2.53 | 1.6 | 17.1 | 950 | 0.193 | 0.0035 |
| 120 | 2 | 37/2.03 | 1.6 | 18.8 | 1180 | 0.153 | 0.0032 |
| 150 | 2 | 37/2.25 | 1.8 | 20.9 | 1480 | 0.124 | 0.0032 |
| 185 | 2 | 37/2.52 | 2.0 | 23.3 | 1810 | 0.0991 | 0.0032 |
| 240 | 2 | 61/2.25 | 2.2 | 26.6 | 2360 | 0.0754 | 0.0032 |
| 300 | 2 | 61/2.52 | 2.4 | 29.6 | 2960 | 0.0601 | 0.003 |
| 400 | 2 | 61/2.85 | 2.6 | 33.2 | 3820 | 0.047 | 0.0028 |
