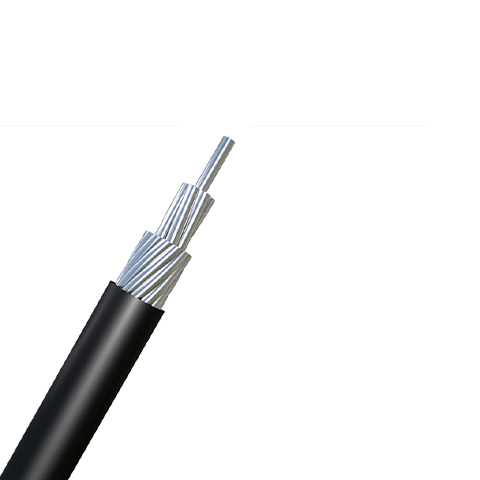

Name: Aluminum covered line
Conductor : AAC & AAAC & ACSR
Insulation : XLPE/LDPE/HDPE
Voltage : 0.6/1kV
Number of cores: Single Core
Package : Export wooden drum & iron wooden drum or as customer require
Rare or special specification also available by your referred document or by your sample.
Insulation color：Black
Insulation：XLPE/HDPE
Conductor:Aluminum alloy 1350-H19 stranded per ASTM B231 / ACSR stranded per ASTM B232/ AAAC
stranded per ASTM B399.
Rated voltage:0.6/1KV
Laying temperature:min. -20°C
Normally outer layer of the strand is right-hand, but for copper conductors, the direction of lay of the outerlayer of the strand is left-hand.
Aluminum Covered Line Wire Strandard:
ASTM B-230 - Aluminum 1350-H19 Wire for Electrical Purposes.
ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
ASTM B-1248 - Polyethylene Plastics Molding and Extrusion Materials.
ASTM C-8.35 - Specifications for Weather-Resistant Polyethylene-Covered Wire and Cable.
Covering material can be PE/PVC/XLPE depend on you requirement.
The parameters included in the table are Covered Line Wire -AAC Conductor&ACSR Conductor&AAAC
Conductor.
Covered line wire is used in overhead distribution circuits operating at primary or secondary voltages.
Covered Line Wire is not an electrically insulated conductor and is treated as a bare conductor when
installed.The insulation provides protection against circuit interruption due to weather.
