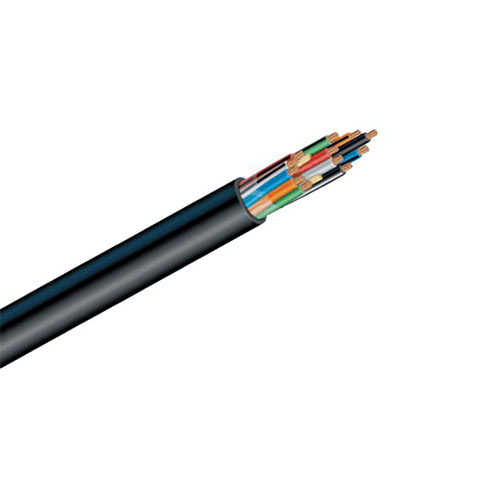

Control Cable

Application

This product is applicable to voltage AC.450/750V and DC 1000V operation controlling, supervising control, and protecting control the electricity system connects.

  • High strength
  • Large current carrying capacity
  • Good catenary property and wear-resistance
  • Anti-crush and corrosion-proof with simple structure
Request a Quote
Share

Application

This product is applicable to voltage AC.450/750V and DC 1000V operation controlling, supervising control, and protecting control the electricity system connects.

Standard

GB/9330-88 Plastics insulates to control the cable

Technical characteristic

1)Rated voltage AC U0/U is 450/750V.

2)Long-term allowable working temperature of cable conductor:
PVC and PE insulate is 70℃
XLPE insulate is 90℃

3) The laying temperature of the cable should not be lower than 0℃.

4) Cable allowable bending radius:
-Unarmored cable, not less than 6 times the outer diameter of the cable;
-Cables with armor or copper tape shielding, not less than 12 times the outer diameter of the cable;
-Flexible cable with braided shielding, not less than 6 times the outer diameter of the cable.

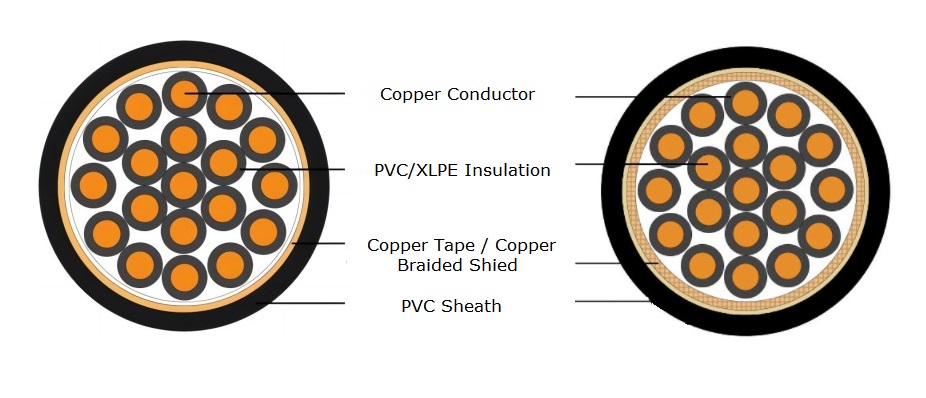

Type , Description and Application of Control Cable

TypeNameApplication

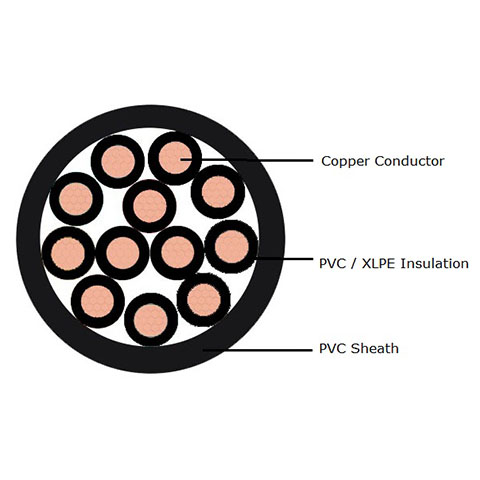

KVVCopper core PVC insulated PVC sheathed control cableLaying indoors, cable trenches, pipelines and other fixed occasions
KYVCopper core polyethylene insulated PVC sheathed control cable
KYJVCopper core XLPE insulated PVC sheathed control cable
KVVPCopper core PVC insulated PVC sheathed braided shielded control cableInstalled indoors, cable trenches, pipelines and other fixed occasions that require shielding
KY(J)VPCopper core (cross-linked) polyethylene insulated PVC sheathed braided shielded control cable
KVVP2Copper core PVC insulated PVC sheathed copper tape shielded control cable
KY(J)VP2Copper core (cross-linked) polyethylene insulated PVC sheathed copper tape shielded control cable

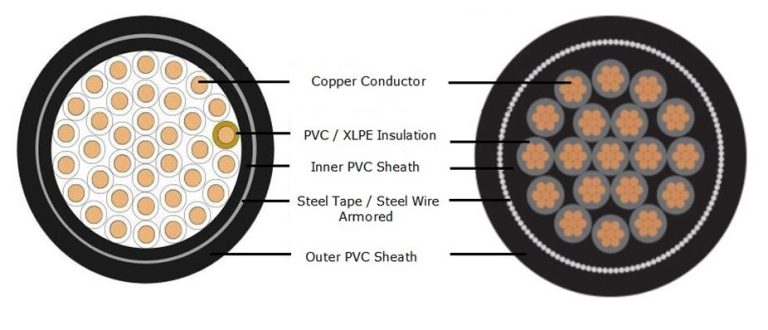

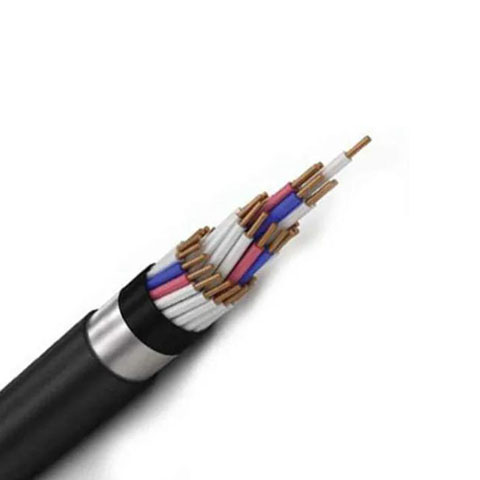

KVV22Copper core PVC insulated PVC sheathed steel tape armored control cable     It can be directly buried in the soil layer, and the cable can withstand a certain mechanical force.
KVV22PCopper core PVC insulated PVC sheathed braided shielded steel tape armored control cable
KVV22P2Copper core PVC insulated PVC sheathed copper tape shielded steel tape armored control cable
KVV32Copper core PVC insulated PVC sheathed thin steel wire armored control cableIt can be laid in the vertical shaft, and the cable can withstand large mechanical force
KVVRCopper core PVC insulated PVC sheathed flexible control cableRemovable use
KVVRPCopper core PVC insulated PVC sheathed braided shield control flexible cableOccasions with movement and shielding requirements

Construction of cable

Resistance of Conductor Insulates

Areamm２Conductor constructionConductor resistancesΩ/kmInsulateThicknessMin insulates resistance at 700CΩ·km
ClassNumber/diametermmNon Tin-Coat annealed CopperTin-coat Copper
0.5516/0.2039.040.10.60.013
0.7511/0.9724.524.80.60.012
27/0.3724.524.80.60.014
524/0.2026.026.70.60.011
1.011/1.1318.118.20.60.011
27/0.4318.118.20.60.013
532/0.2019.520.00.60.010
1.511/1.3812.112.20.70.011
27/0.5212.112.20.70.010
530/0.2513.313.70.70.010
2.511/1.787.417.560.80.010
27/0.687.417.560.80.009
550/0.257.988.210.80.009
411/2.254.614.700.80.0085
27/0.854.614.700.80.0077
611/2.763.083.111.00.0070
27/1.043.083.111.00.0065
1027/1.351.831.84 0.0065

Dimension and Weight of Control Cable

SpecificationDimension  mmWeight  kg/km
KVVKVVPKVV22KVVRKVVKVVPKVV22KVVR
2×0.758.09.8//73114//
2×1.08.810.5//82125//
2×1.510.011.5//110157//
2×2.511.512.5//155201//
2×412.514.5//187346//
2×614.016.0//241351//
2×1017.519.0//291503//
3×0.758.810.5//87130//
3×19.211.0//98143//
3×1.510.512.0//127177//
3×2.512.013.5//181238//
3×413.515.5//234347//
3×615.017.0//329470//
3×1018.520.0//511632//
4×0.759.611.0/9.4104153/114
4×1.010.011.5/10.0119163/123
4×1.511.512.5/11.5156203/158
4×2.513.015.017.013.0226330458228
4×415.016.518.5/315436549/
4×616.518.019.0/441530629/
4×1020.022.025.0/644768947/
5×0.7510.511.5/10.5119162/129
5×1.011.012.0/11.0142193/152
5×1.512.013.5/12.6190248/200
5×2.513.316.518.014.5290390523305
5×414.718.519.5/383501616/
5×618.019.521.5/506627738/
5×1022.524.026.5/8309871126/
7×0.7511.012.515.510.8146203317150
7×1.011.513.016.011.5169217355172
7×1.513.515.017.513.0226331425243
7×2.516.017.519.016.0353472554370
7×417.518.220.5/473602702/
7×619.519.922.5/653790901/
7×1024.024.228.5/108212161397/
14×0.7515.017.018.516.0286397461297
14×1.016.017.519.517.0322444530334
14×1.518.520.022.019.0432551685446
14×2.521.523.524.522.0670800914684
14×424.526.026.5/92910781172/
14×627.029.029.0/124613011509/
19×0.7516.518.020.017.5348457593360
19×1.017.519.021.518.0408517645422
19×1.520.522.523.521.0534675824565
19×2.524.025.526.524.5105410541120899
24×0.7518.419.821.019.04001524668415
24×1.019.521.422.019.8510635777517
24×1.523.524.324.824.27448671001759
24×2.527.728.728.528.11111125813761129
27×0.7518.820.221.419.4477600712493
27×1.020.521.822.420.8579714821596
27×1.524.024.825.324.68079571064825
27×2.528.329.329.128.61209135914811225
30×0.7519.421.322.020.6524636742539
30×1.021.622.423.022.0651787884667
30×1.524.825.826.125.388210931151897
30×2.529.330.330.929.71327142718091344
37×0.7522.022.823.422.6601705938617
37×1.023.224.024.523.67719121014792
37×1.526.427.627.827.41051119713311072
37×2.531.533.233.632.01592174221391613
44×0.7524.425.425.725.17468881077765
44×1.025.8227.026.926.291610361184938
44×1.529.7430.732.230.61251139518171275
44×2.536.037.237.636.51951210125321975
48×0.7524.825.826.025.583392711271789
48×1.026.227.227.326.6968109812362019
48×1.530.231.232.631.11326148818912936
48×2.536.637.338.137.12071241726633843
52×0.7525.426.426.626.189910101192913
52×1.026.927.927.9527.31035118813051057
52×1.531.032.733.3732.01421157919971450
52×2.537.539.239.038.02222239728202250
61×0.7526.827.827.927.696810871350992
61×1.028.429.429.328.81187131714701210
61×1.533.534.735.034.41680183722421699
61×2.540.241.441.140.7259927503175/
