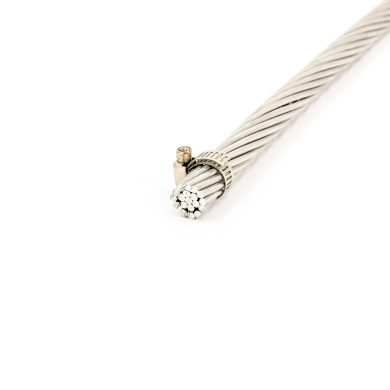

ASTM B399 6201 ALUMINUM ALLOY CONDUCTOR GREELY

APPLICATIONS:

Conductor(AAAC) have been widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and other places special geographical characteristics. The co-nductorhave excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity.

BENEFITS:

AAAC (All Aluminum Alloy Conductor) conductor cable referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the latter, their use becomes particularly favourable when ice and win loading are low.
High tensile strength as compared to AAC conductor.
Higher conductivity as compared to ACSR conductor.
Better corrosion resistance than ACSR conductor.

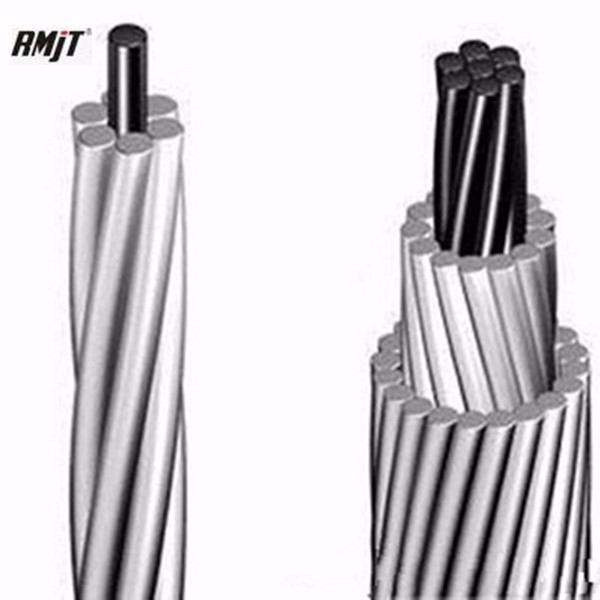

CONSTRUCTION:

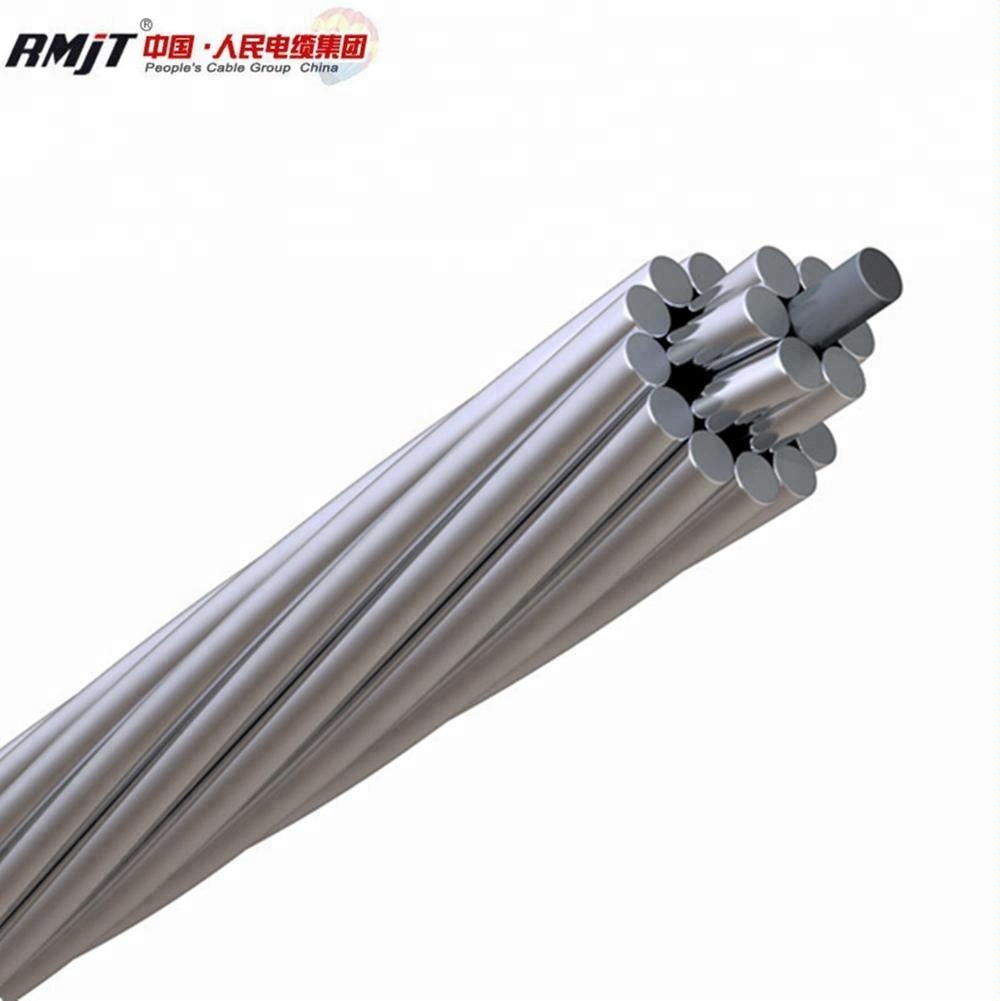

Standard 6201T81 high strength aluminum conductors, conforming to ASTM Specification B399, are concentriclay- strandedsimilar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.

STANDARDS:

GB1179, IEC61089, BS3242, DIN48201, ASTMB399

WORKING CONDITIONS:

Ambient temperature: Above -20 °C
Working temperature: Not exceed 80 °C
Laying bending radius: Not less than 30 times the cables outer diameter

AREA		Stranding and wire diameter	Approx. overall diameter	Weight	Nominal Breaking Load	Nom. DC resistance at 20 Deg.
Nominal	Actual
AWGorMCM	(mm2)	(mm)	(mm)	(kg/km)	(kN)	(ohm/km)
6	13.3	7/1.554	4.67	37	4.22	2.5199
4	21.15	1/1.961	5.89	58	6.71	1.5824
2	33.63	7/2.474	7.42	93	10.68	0.9942
1/0	53.48	7/3.119	9.36	148	16.97	0.6256
2/0	67.42	7/3.503	10.51	186	20.52	0.4959
3/0	85.03	7/3.932	11.8	234	25.86	0.3936
4/0	107.23	7/4.417	13.26	296	32.63	0.3119
250	126.66	19/2.913	14.57	349	38.93	0.2642
300	152.1	19/63.193	15.97	419	46.77	0.2199
350	177.35	19/3.447	17.24	489	52.25	0.1887
400	202.71	19/3.686	18.43	559	59.74	0.1650
450	228	19/3.909	19.55	629	67.19	0.1467
500	253.35	19/4.120	20.6	698	74.64	0.1321
550	278.6	37/3.096	21.67	768	83.80	0.1202
600	303.8	37/3.233	22.63	838	91.38	0.1102
650	329.25	37/3.366	23.56	908	97.94	0.1016
700	354.55	37/3.493	24.45	978	102.20	0.0944
750	380.2	37/3.617	25.32	1049	109.60	0.0880
800	405.15	37/3.734	26.14	1117	116.80	0.0826
900	456.16	37/3.962	27.73	1258	131.50	0.0733
1000	506.71	37/4.176	29.23	1399	146.10	0.0660

Code Name	Area		Size&Stranding of ACSR with equal diameter		No. and diameter	Overall diameter	Weight	Nominal breaking load
	Nominal	Actual	AWG or MCM	Al/St
	MCM	mm2			mm	mm	kg/km	kN
AKRON	30.58	15.48	6	6/1	7*1.68	5.04	42.70	4.9200
ALTON	48.69	24.71	4	6/1	7*2.12	6.35	68.00	7.8400
AMES	77.47	39.22	2	6/1	7*2.67	8.02	108.00	12.4500
AZUSA	123.3	62.38	1/0	6/1	7*3.37	10.11	172.00	18.9700
ANAHEIM	155.4	78.65	2/0	6/1	7*3.78	11.35	217.00	23.9300
AMHERST	195.7	99.22	3/0	6/1	7*4.25	12.75	273.00	30.1800
ALLIANCE	246.9	125.1	4/0	6/1	7*4.77	14.31	345.00	38.0500
BUTTE	312.8	158.6	266.8	26/7	19*3.26	16.3	437.00	48.7600
CANTON	394.5	199.9	366.4	26/7	19*3.66	18.3	551.00	58.9100
CAIRO	465.4	235.8	397.5	26/7	19*3.98	19.88	650.00	69.4800
DARIEN	559.5	283.5	477	26/7	19*4.36	21.79	781.00	83.5200
ELGIN	652.4	330.6	556.5	26/7	19*4.71	23.54	911.00	97.4200
FLINT	740.8	375.3	636	26/7	37*3.59	25.16	1035.00	108.2100
GREELEY	927.2	469.8	795	26/7	37*4.02	28.14	1295.00	135.4700
