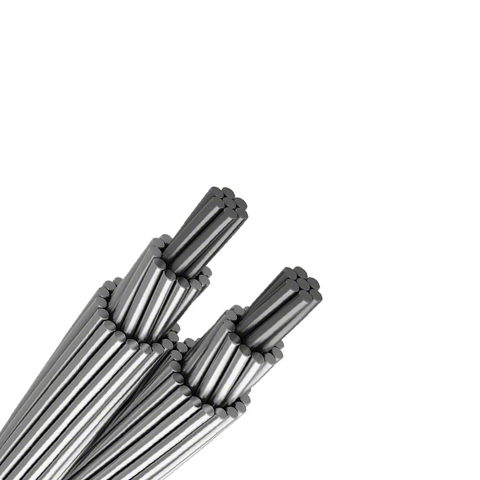

ACSR AS/NZS3607–Aluminum Conductors Steel Reinforced

Structure and technical characteristic of ACSR AS/NZS3607

‌Core design‌: ‌Steel core reinforcement‌: The center is galvanized high-strength steel wire (GZ mark), and

the outer layer is twisted with multiple strands of high-purity aluminum wire.

‌Aluminum strand layer‌: 1350-H19 hard aluminum wire (purity ≥99.5%), conductivity ≥61% IACS,

aluminum layer cross-sectional area covers 16-1590mm².

‌Standardized parameters‌: Size and weight‌: Outer diameter range 6.0-45.0mm, unit mass about 50-

3000kg/km.

‌Mechanical properties‌: Minimum breaking load, elastic modulus (about 60-80GPa) and linear expansion

coefficient all meet the requirements of AS/NZS 3607 standard‌.

ACSR AS/NZS3607 parameter

Code Name	Strand and Dia. Aluminum	Strand and Dia. Steel	Nominal O.D.	Area	Weight	Breaking load	Modulus of elasticity	Coefficient   of linear  expansion	DC resist at 20 c	AC resist   at 50Hz   75℃	Inductive reactance to 0.3m at 50Hz
	No./mm	No./mm	mm	mm2	kg/km	kN	GPa	x10-6/℃	ohm/Km	ohm/Km	ohm/Km
Almond	6/2.50	1/2.50	7.5	34.4	119	10.5	83	19.3	0.975	1.31	0.296
Apricot	6/2.75	1/2.75	8.3	41.6	144	12.6	83	19.3	0.805	1.08	0.29
Apple	6/3.00	1/3.00	9	49.5	171	14.9	83	19.3	0.677	0.91	0.285
Banana	6/3.75	1/3.75	11.3	77.3	268	22.7	83	19.3	0.433	0.582	0.271
Cherry	6/4.50	7/1.60	14.3	120	402	33.4	80	19.9	0.271	0.367	0.256
Grape	6/4.75	7/2.50	17.5	182	677	63.5	88	18.4	0.196	0.263	0.24
Lemon	30/2.20	7/3.00	21	262	973	90.4	88	18.4	0.136	0.167	0.228
Lychee	30/3.00	7/3.25	22.8	307	1140	105	88	18.4	0.116	0.142	0.223
Lime	30/3.50	7/3.50	24.5	356	1320	122	88	18.4	0.100	0.123	0.219
Mango	54/3.00	7/3.00	27	431	1440	119	78	19.9	0.0758	0.0955	0.212
Orange	54/3.25	7/3.25	29.3	506	1690	137	78	19.9	0.0646	0.0816	0.207
Olive	54/3.50	7/3.50	31.5	587	1960	159	78	19.9	0.0557	0.0705	0.202
Pawpaw	54/3.75	19/2.25	33.8	672	2240	178	77	20.0	0.0485	0.0615	0.198
Quince	3/1.75	4/1.75	5.3	16.8	95	12.7	136	13.9	3.25	4.37	0.346
Raisin	3/2.50	4/2.50	7.5	34.4	195	24.4	136	13.9	1.59	2.14	0.324
Sultana	4/4.00	3/3.00	9	49.5	243	28.3	119	15.2	0.897	1.21	0.302
Walnut	4/3.75	3/3.75	11.3	77.3	380	43.9	119	15.2	0.573	0.77	0.288
