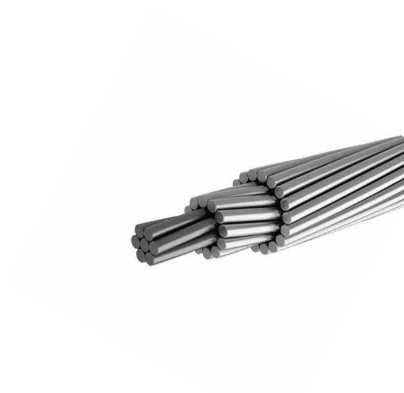

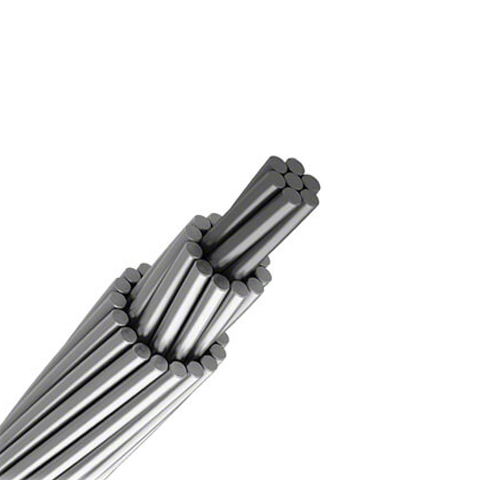

ACSR DIN 48204 is a steel core aluminum stranded wire that complies with EU standards. It has high mechanical strength and good conductivity and is widely used in the field of power transmission. It consists of a steel core and an outer layer of aluminum stranded wire, which complies with the EU DIN 48204 standard. The wire core material is a steel-aluminum composite structure.
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers
optimal strength for line design.
Construction:
● Concentric-lay stranded.
● Most economical solution for overhead power transmission and distribution projects.
● Excellent weather-resistance property.
● Dependable and stable performance up to 40 years.
Standards: DIN 48204
| Area | Stranding and wire diameter | Overall Diameter | Linear mass | Nominal breaking load | Maximum resistance at 20℃ | ||||||
| Nominal | Actual | ||||||||||
| Al/St | Al | St | Total | Al | St | Al | St | Total | |||
| mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | ohm/km |
| 16/2.5 | 15.3 | 2.5 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 42 | 20 | 62 | 595 | 1.8780 |
| 25/4.0 | 23.8 | 4.0 | 27.8 | 6/2.25 | 1/2.25 | 6.8 | 65 | 32 | 97 | 920 | 1.2002 |
| 36/6.0 | 34.3 | 5.7 | 40.0 | 6/2.70 | 1/2.70 | 8.1 | 94 | 46 | 140 | 1265 | 0.8352 |
| 44/32.0 | 44.0 | 31.7 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 122 | 250 | 372 | 4500 | 0.6573 |
| 50/8.0 | 48.3 | 8.0 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 132 | 64 | 196 | 1710 | 0.5946 |
| 50/30 | 51.2 | 29.8 | 81.0 | 12/2.33 | 7/2.33 | 11.7 | 141 | 237 | 378 | 4380 | 0.5643 |
| 70/12 | 69.9 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 193 | 91 | 284 | 2680 | 0.4130 |
| 95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 260 | 123 | 383 | 3575 | 0.3058 |
| 95/55 | 96.5 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16.0 | 266 | 446 | 712 | 7935 | 0.2992 |
| 105/75 | 105.7 | 75.5 | 181.5 | 14/3.10 | 9/2.25 | 17.5 | 292 | 599 | 891 | 10845 | 0.2735 |
| 120/20 | 121.06 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 336 | 158 | 494 | 4565 | 0.2374 |
| 120/70 | 122.0 | 71.3 | 193.3 | 12/3.6 | 7/3.60 | 18.0 | 337 | 564 | 901 | 10000 | 0.2364 |
| 125/30 | 127.9 | 29.8 | 157.7 | 30/2.33 | 7/2.33 | 16.3 | 353 | 238 | 591 | 5760 | 0.2259 |
| 150/25 | 148.9 | 24.2 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 411 | 194 | 605 | 5525 | 0.1939 |
| 170/40 | 171.8 | 40.1 | 211.9 | 30/2.70 | 7/2.70 | 18.9 | 475 | 319 | 794 | 7675 | 0.1682 |
| 185/30 | 183.8 | 29.8 | 213.6 | 26/3.00 | 7/2.33 | 19.0 | 507 | 239 | 746 | 6620 | 0.1571 |
| 210/35 | 209.1 | 34.1 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 577 | 273 | 850 | 7490 | 0.1380 |
| 210/50 | 212.1 | 49.5 | 261.6 | 30/3.00 | 7/3.00 | 21.0 | 587 | 394 | 981 | 9390 | 0.1362 |
| 230/30 | 230.9 | 29.8 | 260.7 | 24/3.50 | 7/2.33 | 21.0 | 638 | 239 | 877 | 7310 | 0.1249 |
| 240/40 | 243.0 | 39.5 | 282.5 | 26/3.45 | 7/2.68 | 21.9 | 671 | 316 | 987 | 8640 | 0.1188 |
| 265/35 | 263.7 | 34.1 | 297.8 | 24/3.74 | 7/2.49 | 22.4 | 728 | 274 | 1002 | 8305 | 0.1094 |
| 300/50 | 304.3 | 49.5 | 353.7 | 26/3.86 | 7/3.00 | 24.5 | 840 | 396 | 1236 | 10700 | 0.09487 |
| 305/40 | 304.6 | 39.5 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 843 | 317 | 1160 | 9940 | 0.0949 |
| 340/30 | 339.3 | 29.8 | 369.1 | 48/3.00 | 7/2.33 | 25.0 | 938 | 242 | 1180 | 9290 | 0.08509 |
| 380/50 | 382.0 | 49.5 | 431.5 | 54/3.00 | 7/3.00 | 27.0 | 1056 | 397 | 1453 | 12310 | 0.08509 |
| 385/35 | 386.0 | 34.1 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1067 | 277 | 1344 | 10480 | 0.07573 |
| 435/55 | 434.03 | 59.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1203 | 450 | 1653 | 13645 | 0.07478 |
| 450/40 | 448.7 | 39.5 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1241 | 320 | 1561 | 12075 | 0.06656 |
| 490/65 | 490.3 | 63.6 | 553.9 | 54/3.40 | 7/3.40 | 30.6 | 1356 | 510 | 1866 | 15310 | 0.06434 |
| 495/35 | 494.1 | 34.1 | 528.2 | 45/3.74 | 7/2.49 | 29.9 | 1363 | 283 | 1646 | 12180 | 0.05846 |
| 510/45 | 510.2 | 45.3 | 555.5 | 48/3.68 | 7/2.87 | 30.7 | 1413 | 365 | 1778 | 13665 | 0.05655 |
| 550/70 | 550.0 | 71.3 | 621.3 | 54/3.60 | 7/3.60 | 32.4 | 1520 | 572 | 2092 | 17060 | 0.05259 |
| 560/50 | 561.7 | 49.5 | 611.2 | 48/3.86 | 7/3.00 | 32.2 | 1553 | 401 | 1954 | 14895 | 0.0514 |
| 570/40 | 565.5 | 39.5 | 610.3 | 45/4.00 | 7/2.68 | 32.2 | 1563 | 325 | 1888 | 13900 | 0.05108 |
| 650/45 | 698.8 | 45.3 | 653.49 | 45/4.30 | 7/2.87 | 34.4 | 1791 | 372 | 2163 | 15552 | 0.0442 |
| 680/85 | 678.8 | 86.0 | 764.8 | 54/4.00 | 18/2.40 | 36.0 | 1866 | 702 | 2570 | 21040 | 0.0426 |
| 1045/45 | 1045.58 | 45.3 | 1090.9 | 72/4.30 | 7/2.87 | 43.0 | 2879 | 370 | 3249 | 21787 | 0.0277 |
