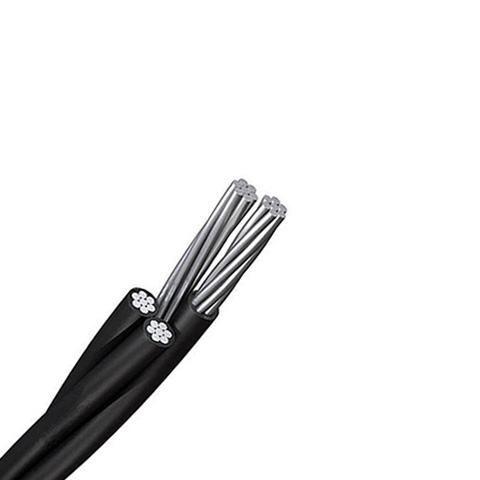

Quadruplex Overhead Service Drop cable

Description of ‌Quadruplex Overhead Service Drop cable

Conductor Combination：‌Three insulated phase conductors: usually aluminum conductors (such as

AAAC 1350 or AAAC 6201 alloys) covered with insulation for three-phase AC transmission.

‌One insulated neutral conductor: the same material as the phase conductors or a high-strength alloy

(such as AAAC 6201), the neutral conductor may be bare in some designs‌.

Insulation material:The outer layer of the phase and neutral wires is insulated with XLPE or PE, with a

temperature range of 75°C (PE) to 90°C (XLPE), and is UV and weather resistant.

Strung design:Four conductors are formed into a compact structure by concentric twisting or parallel

bundling, and the outer layer may be wrapped with a weather-resistant polyolefin sheath.

Advantages and Features of ‌TQuadruplex Overhead Service Drop cable

‌High current carrying capacity‌:

The four-conductor design supports higher current transmission and reduces voltage drop, making it

suitable for long-distance power distribution (such as rural power grids).

Multi-function integration‌:

Integrating phase, neutral and optional ground wires simplifies the installation process and reduces

wiring complexity.

‌Environmental adaptability‌:

The insulation layer and twisted structure provide double protection, withstanding extreme temperatures

(-40°C to 90°C) and chemical corrosion (such as salt spray and acid rain).

Parameters of Quadruplex Overhead Service Drop cable

Quadruplex Service Drop -AAC Phase + AAC Neutral

Code Word	Phase Conductor				Bare Neutral Conductor				Approx O.D.		Approx. Weight
	Size AWG	Wires	Insulation Thickness		Size AWG	Wires	Rated Strength				Conductor		Total
			Inchs	mm			lbs	kN	Inchs	mm	lbs / 1000f	kg/km	lbs / 1000f	kg/km
Quarter	6	1	0.045	1.14	6	7	563	2.5	0.57	14.48	97	144.35	133	197.92
Clydesdale	4	1	0.045	1.14	4	7	881	3.92	0.67	17.02	155	230.66	197	293.16
Pinto	4	7	0.045	1.14	4	7	881	3.92	0.71	18.03	157	233.63	210	312.5
Mustang	2	7	0.045	1.14	2	7	1350	6.01	0.85	21.59	250	372.03	317	471.73
Shire	1	19	0.06	1.52	1	7	1640	7.30	1.00	25.4	315	468.75	408	607.14
Libyan	1/0	7	0.06	1.52	1/0	7	1990	8.85	1.09	27.69	397	590.78	510	758.93
Criollo	1/0	19	0.06	1.52	1/0	7	1990	8.85	1.08	27.43	397	590.78	499	742.56
Orloff	2/0	7	0.06	1.52	2/0	7	2510	11.17	1.2	30.48	501	745.54	629	936.01
Percheron	2/0	19	0.06	1.52	2/0	7	2510	11.17	1.19	30.23	501	745.54	614	913.69
Mongolian	3/0	7	0.06	1.52	3/0	7	3040	13.53	1.32	33.53	631	938.99	776	1154.77
Hanoverian	3/0	19	0.06	1.52	3/0	19	3310	14.73	1.31	33.27	631	938.99	758	1127.98
Singlefoot	4/0	7	0.06	1.52	4/0	7	3830	17.04	1.45	36.83	796	1184.53	962	1431.55
Oldenberg	4/0	19	0.06	1.52	4/0	19	4020	17.89	1.44	36.58	796	1184.53	939	1397.33

Quadruplex Service Drop -AAC Phase + ACSR Neutral

Code Word	Phase Conductor				Bare Neutral Conductor				Approx O.D.		Approx. Weight
	Size AWG	Wires	Insulation Thickness		Size AWG	Wires	Rated Strength				Conductor		Total
			Inchs	mm			lbs	kN	Inchs	mm	lbs / 1000f	kg/km	lbs / 1000f	kg/km
Morchuca	6	1	0.045	1.14	6	6/1	1190	5.29	0.58	14.73	97	144.35	144	214.29
Chola	6	7	0.045	1.14	6	6/1	1190	5.29	0.61	15.49	99	147.32	153	227.68
Morgan	4	1	0.045	1.14	4	6/1	1860	8.28	0.69	17.53	154	229.17	216	321.43
Hackney	4	7	0.045	1.14	4	6/1	1860	8.28	0.72	18.29	157	233.63	229	340.77
Palomino	2	7	0.045	1.14	2	6/1	2850	12.68	0.87	22.1	249	370.54	347	516.37
Albino	1	19	0.06	1.52	1	6/1	3550	15.79	1.02	25.91	314	467.26	446	663.69
Standardbred	1/0	7	0.06	1.52	1/0	6/1	4380	19.49	1.11	28.19	397	590.78	557	828.87
Costena	1/0	19	0.06	1.52	1/0	6/1	4380	19.49	1.10	27.94	397	590.78	546	812.5
Chicoteagues	2/0	7	0.06	1.52	2/0	6/1	5300	23.58	1.22	30.99	500	744.05	688	1023.81
Grullo	2/0	19	0.06	1.52	2/0	6/1	5300	23.58	1.20	30.48	500	744.05	673	1001.49
Mare	3/0	7	0.06	1.52	3/0	6/1	6620	29.45	1.34	34.04	630	937.5	850	1264.89
Suffolk	3/0	19	0.06	1.52	3/0	6/1	6620	29.45	1.32	33.53	630	937.5	833	1239.59
Stallion	4/0	7	0.06	1.52	4/0	6/1	8350	37.15	1.48	37.59	795	1183.04	1055	1569.95
Appaloosa	4/0	19	0.06	1.52	4/0	6/1	8350	37.15	1.46	37.08	795	1183.04	1033	1537.21

Quadruplex Service Drop·AAC Phase+AAAC Neutral

Code Word	Phase Conductor				Bare Neutral Conductor				Approx O.D.		Approx. Weight
	Size AWG	Wires	Insulation Thickness		Size AWG	Wires	Rated Strength				Conductor		Total
			Inchs	mm			lbs	kN	Inchs	mm	lbs / 1000f	kg/km	lbs / 1000f	kg/km
Arabian	4	7	0.045	1.14	48.69	7	1760	7.83	0.72	18.29	163	242.56	217	322.92
Belgian	2	7	0.045	1.14	77.47	7	2800	12.46	0.87	22.10	260	386.91	327	486.61
Shetland	1/0	19	0.06	1.52	123.3	7	4270	19	1.10	27.94	413	614.59	515	766.37
Thoroughbred	2/0	19	0.06	1.52	155.40	7	5390	23.98	1.20	30.48	521	775.30	635	944.94
Trotter	3/0	19	0.06	1.52	195.7	7	6790	30.21	1.32	33.53	656	976.19	784	1166.67
Walking	4/0	19	0.06	1.52	246.90	7	8560	38.09	1.46	37.08	828	1232.15	971	1444.95
