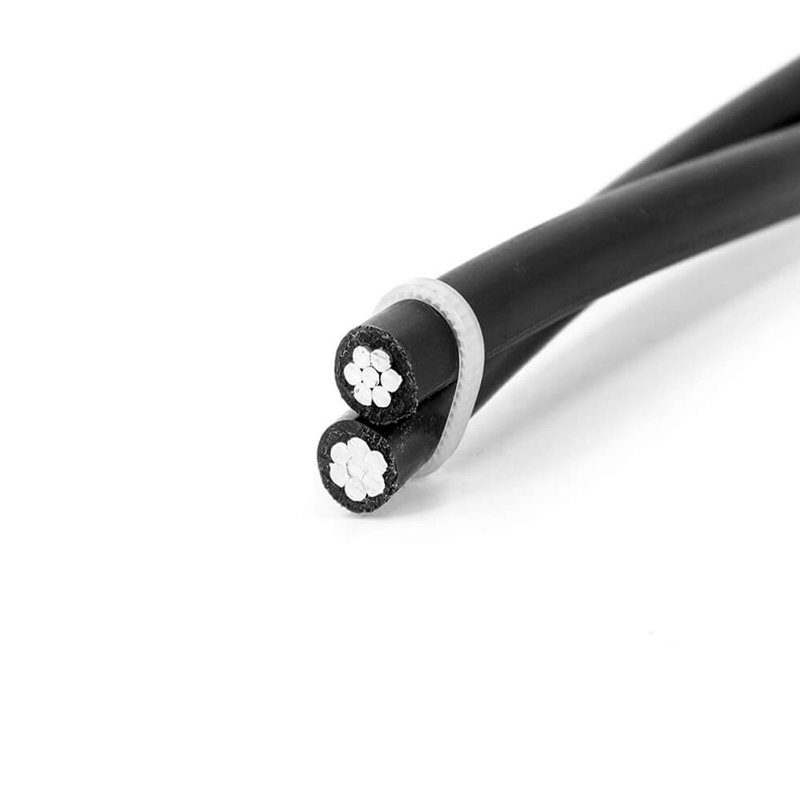

Duplex Overhead Service Drop cable

Description of ‌Duplex Overhead Service Drop

‌Structural composition‌：It consists of two insulated wire cores (such as polyethylene or cross-linked

polyethylene insulation) and a bare conductor (usually aluminum or aluminum alloy) to form a double-

core structure.

Conductor material‌:The conductor is mainly made of aluminum or aluminum alloy.

Conductor temperature:limit is ‌75℃ (polyethylene insulation)‌ or ‌90℃ (cross-linked polyethylene

insulation)‌‌.

Applicable to low-voltage scenarios with phase voltage ≤600V‌.

International standards‌：Complies with ‌ASTM B-230‌ (aluminum conductor), ‌ASTM B-232‌ (steel core

aluminum stranded wire), etc.

Examples of common models：

‌Shepherd 1*6AWG+6AWG‌: Nominal cross section 6AWG, weight about 71.5 kg/km, current carrying

capacity 485A‌.

Dachshund 14AWG+14AWG: Nominal cross section 4AWG, tensile strength up to 15.19 kg/mm², suitable

for high current scenarios.

Application Of Duplex Overhead Service Drop

The cables are also described as service drop cables. Duplex cables are used in single-phase power lines.

Overhead distribution line: As part of low-voltage overhead cables (such as ABC cables), it is used for

street lighting, temporary laying of buildings, etc.

‌Inlet line: Connects the distribution line with the user terminal, suitable for power access to residential or

small commercial facilities.

Parameters of Duplex Overhead Service Drop

Duplex Service Drop ·AAC Phase + AAC Neutral

Code Word	Phase Conductor				Bare Neutral Conductor				Approx O.D.		Approx. Weight
	Size AWG	Wires	Insulation Thickness		Size AWG	Wires	Rated Strength				Conductor		Total
			Inchs	mm			lbs	kN	Inchs	mm	lbs / 1000f	kg/km	lbs / 1000f	kg/km
Pekingese	6	1	0.045	1.14	6	7	563	0.2529	0.44	11.18	49	72.92	61	90.77
Collie	6	7	0.045	1.14	6	7	563	0.2529	0.45	11.43	49	72.92	64	95.24
Cocker	6	7	0.06	1.52	6	7	563	0.2529	0.48	12.19	49	72.92	69	102.68
Dachshund	4	1	0.045	1.14	4	7	881	0.3957	0.53	13.46	78	116.07	92	136.91
Spaniel	4	7	0.045	1.14	4	7	881	0.3957	0.55	13.97	78	116.07	96	142.86
Cairn	4	7	0.06	1.52	4	7	881	0.3957	0.58	14.73	78	116.07	103	153.27
Doberman	2	7	0.045	1.14	2	7	1350	0.6064	0.67	17.02	125	186.01	147	218.75
Airedale	1	19	0.06	1.52	1	7	1640	0.7367	0.76	19.3	157	233.63	188	279.76
Basset	1/0	7	0.06	1.52	1/0	7	1990	0.8939	0.84	21.34	199	296.13	236	351.19
Malemute	1/0	19	0.06	1.52	1/0	7	1990	0.8939	0.84	21.34	199	296.13	233	346.73

Duplex Service Drop -AAC Phase + ACSR Neutral

Code Word	Phase Conductor				Bare Neutral Conductor				Approx O.D.		Approx. Weight
	Size AWG	Wires	Insulation Thickness		Size AWG	Wires	Rated Strength				Conductor		Total
			Inchs	mm			lbs	kN	Inchs	mm	lbs / 1000f	kg/km	lbs / 1000f	kg/km
Setter	6	1	0.045	1.14	6	6/1	1190	0.5345	0.45	11.43	49	72.92	72	107.14
Shepherd	6	7	0.045	1.14	6	6/1	1190	0.5345	0.47	11.94	49	72.92	75	111.61
Retriever	6	7	0.06	1.52	6	6/1	1190	0.5345	0.5	12.7	49	72.92	80	119.05
Eskimo	4	1	0.045	1.14	4	6/1	1860	0.8355	0.54	13.72	78	116.07	110	163.69
Terrier	4	7	0.045	1.14	4	6/1	1860	0.8355	0.57	14.48	78	116.07	115	171.13
Yorkshire	4	7	0.06	1.52	4	6/1	1860	0.8355	0.6	15.24	78	116.07	121	180.06
Chow	2	7	0.045	1.14	2	6/1	2850	1.2802	0.69	17.53	125	186.01	177	263.39
Labrador	1	19	0.06	1.52	1	6/1	3550	1.5947	0.79	20.07	157	233.63	225	334.82
Bloodhound	1/0	7	0.06	1.52	1/0	6/1	4380	1.9675	0.87	22.1	198	294.64	283	421.13
Bull	1/0	19	0.06	1.52	1/0	6/1	4380	1.9675	0.87	22.1	198	294.64	279	415.18

Duplex Service Drop -AAC Phase + AAAC Neutral

Code Word	Phase Conductor				Bare Neutral Conductor				Approx O.D.		Approx. Weight
	Size AWG	Wires	Insulation Thickness		Size AWG	Wires	Rated Strength				Conductor		Total
			Inchs	mm			lbs	kN	Inchs	mm	lbs / 1000f	kg/km	lbs / 1000f	kg/km
Chihuahua	6	1	0.045	1.14	30.58	7/1	1110	0.4986	0.45	11.43	53	78.87	65	96.73
Vizsla	6	7	0.045	1.14	30.58	7/1	1110	0.4986	0.47	11.94	53	78.87	67	99.7
Harrier	4	1	0.045	1.14	48.69	7/1	1760	0.7906	0.54	13.72	84	125	98	145.83
Whippet	4	7	0.045	1.14	48.69	7/1	1760	0.7906	0.57	14.48	85	126.49	103	153.27
Schnauzer	2	7	0.045	1.14	77.47	7/1	2800	1.2578	0.69	17.53	135	200.89	157	233.63
Afghan	1/0	7	0.06	1.52	123.3	7/1	4270	1.9181	0.87	22.1	215	319.94	252	375
Heeler	1/0	19	0.06	1.52	123.3	7/1	4270	1.9181	0.87	22.1	215	319.94	249	370.54
