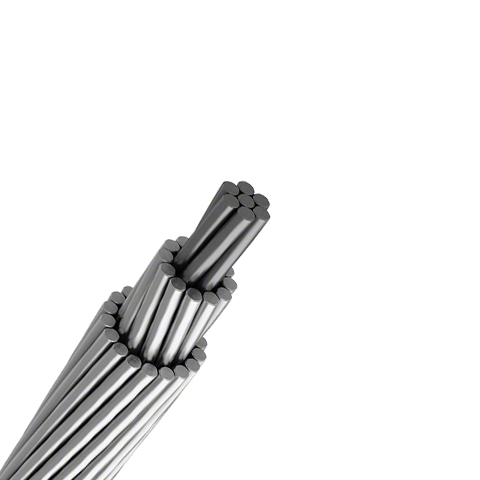

AACSR Aluminum Alloy conductor Steel Reinforced

Description of AACSR conductor

Tensile strength is 30% more than ACSR with same diameter, Large span and long crossing is possible.

Light in weight and anti-sag performance is 1.4-1.4 times better than ACSR.

Excellent and stable transmission under 90 'C and up to 150 'C when overload.

Concentric-lay stranded: Galvanized steel core wrapped by single layers or multiple layers concentrically

stranded Al-Mg-Si 6201 wires.

AACSR conductor is available with steel core of Class A, B or C galvanizing or Aluminium clad (AW)

Standards of All Aluminum Alloy Conductor-AACSR conductor

● ASTM B711

●ASTM B498-AACSR GA/GB/GC

●ASTM B606-AACSR/HS

● ASTM B341-AACSR/AZ

● ASTM B502-AACSR/AW

● ASTM B802/B803-AACSR MA/MB/MC

● Other National Standards can also be applied

Parameter of All Aluminum Conductor AACSR conductor

Aluminum-Alloy Area	Steel Core Section Area	Total Section Area	Aluminum Alloy Strands	Single Aluminum Alloy Wire Diameter	Steel Core Strands	Single Steel Wire Diameter	Steel Core Diameter	Conductor Overall Diameter	Rated Strength	Weight
mm2	mm2	mm2		mm		mm	mm	mm	kN	kg/km
140	23	163	26	2.62	7	2.04	6.12	16.6	75	565
140	33	173	30	2.44	7	2.44	7.32	17.1	87.4	643
160	26	186	26	2.80	7	2.18	6.54	17.7	85.6	646
160	38	198	30	2.61	7	2.61	7.83	18.3	106	736
180	29	209	26	2.97	7	2.31	6.93	18.8	95.1	731
180	42	222	30	2.76	7	2.76	8.28	19.3	112	823
200	32	232	26	3.13	7	2.43	7.29	19.8	106	805
200	47	247	30	2.91	7	2.91	8.73	20.4	124	915
224	36	260	26	3.31	7	2.57	7.71	21.0	118	901
224	52	276	30	3.08	7	3.08	9.24	21.6	139	1025
250	41	291	26	3.50	7	2.72	8.16	22.2	129	1008
250	58	308	30	3.26	7	3.26	9.78	22.8	156	1149
280	46	326	26	3.70	7	2.88	8.64	23.4	144	1127
280	65	345	30	3.45	7	3.45	10.40	24.2	171	1286
315	52	367	26	3.93	7	3.06	9.18	24.9	163	1272
315	72	387	30	3.66	19	2.20	11.00	25.6	190	1438
355	58	413	26	4.17	7	3.24	9.72	26.4	183	1430
355	81	436	30	3.88	19	2.33	11.60	27.2	211	1614
400	65	465	26	4.43	7	3.45	10.40	28.1	207	1616
400	91	491	30	4.12	19	2.47	12.40	28.8	237	1818
450	59	509	54	3.26	19	1.98	9.90	29.5	215	1706
500	63	563	54	3.43	19	2.06	10.30	30.9	229	1878
560	71	631	54	3.63	19	2.18	10.90	32.7	257	2104
630	80	710	54	3.85	19	2.31	11.60	34.6	286	2365
710	90	800	54	4.09	19	2.45	12.20	36.8	322	2664
800	101	901	54	4.34	19	2.60	13.00	39.0	363	3003
900	73	973	84	3.69	19	2.21	11.00	40.6	355	3060
1000	81	1081	84	3.89	19	2.33	11.60	42.8	391	3400
1120	91	1211	84	4.12	19	2.47	12.40	45.3	439	3816
1250	102	1352	84	4.35	19	2.61	13.00	47.8	490	4255

Application of AACSR Aluminum Alloy conductor Steel Reinforced

AACSR conductor is suitable for practical overhead transmission application, especially for conditions

like large span in towers or heavy wire load from wind and ice which often happens in high altitude areas.
