Conductor(AAAC) have been widely used in power transmission lines with various voltage levels, and also
used in power lines across great rivers, heavy ice area, and other places special geographical characteristic
s.
The conductor has excellent advantages of high strength, large current carrying capacity and good
catenary property as well as wear-resistance, anti-crush and corrosion-proof with structure,
convenient installation and maintenance, low cost for the line, large transmission capacity.

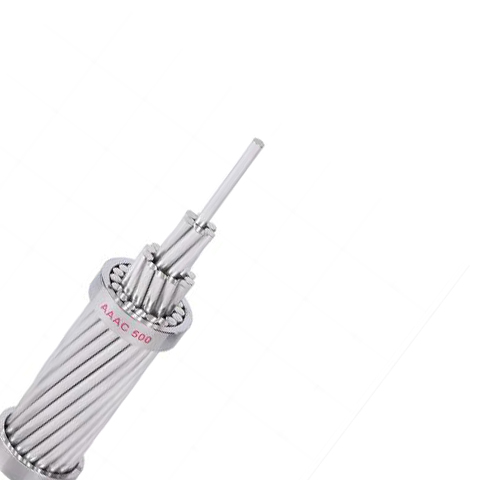

AAAC (All Aluminum Alloy Conductor) conductor cable referred to have higher strength but lower
conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in
place of the more conventional ACSR; Having lower breaking loads than the latter, their use becomes
particularly favourable when ice and win loading are low.
High tensile strength as compared to AAC conductor.
Higher conductivity as compared to ACSR conductor.
Standards:
GB1179, IEC61089, BS3242, DIN48201, ASTMB399
| Code Name | Area | Size&Stranding of ACSR with equal diameter | No. and diameter | Overall diameter | Weight | Nominal breaking load | ||
| Nominal | Actual | AWG or MCM | Al/St | |||||
| MCM | mm2 | mm | mm | kg/km | kN | |||
| AKRON | 30.58 | 15.48 | 6 | 6/1 | 7*1.68 | 5.04 | 42.7 | 4.92 |
| ALTON | 48.69 | 24.71 | 4 | 6/1 | 7*2.12 | 6.35 | 68 | 7.84 |
| AMES | 77.47 | 39.22 | 2 | 6/1 | 7*2.67 | 8.02 | 108 | 12.45 |
| AZUSA | 123.3 | 62.38 | 1/0 | 6/1 | 7*3.37 | 10.11 | 172 | 18.97 |
| ANAHEIM | 155.4 | 78.65 | 2/0 | 6/1 | 7*3.78 | 11.35 | 217 | 23.93 |
| AMHERST | 195.7 | 99.22 | 3/0 | 6/1 | 7*4.25 | 12.75 | 273 | 30.18 |
| ALLIANCE | 246.9 | 125.1 | 4/0 | 6/1 | 7*4.77 | 14.31 | 345 | 38.05 |
| BUTTE | 312.8 | 158.6 | 266.8 | 26/7 | 19*3.26 | 16.3 | 437 | 48.76 |
| CANTON | 394.5 | 199.9 | 366.4 | 26/7 | 19*3.66 | 18.3 | 551 | 58.91 |
| CAIRO | 465.4 | 235.8 | 397.5 | 26/7 | 19*3.98 | 19.88 | 650 | 69.48 |
| DARIEN | 559.5 | 283.5 | 477 | 26/7 | 19*4.36 | 21.79 | 781 | 83.52 |
| ELGIN | 652.4 | 330.6 | 556.5 | 26/7 | 19*4.71 | 23.54 | 911 | 97.42 |
| FLINT | 740.8 | 375.3 | 636 | 26/7 | 37*3.59 | 25.16 | 1035 | 108.21 |
| GREELEY | 927.2 | 469.8 | 795 | 26/7 | 37*4.02 | 28.14 | 1295 | 135.47 |
