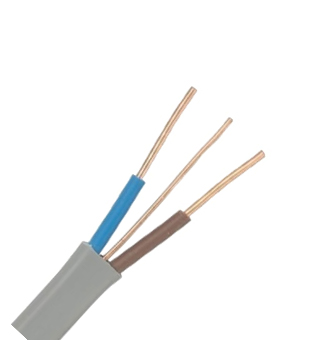

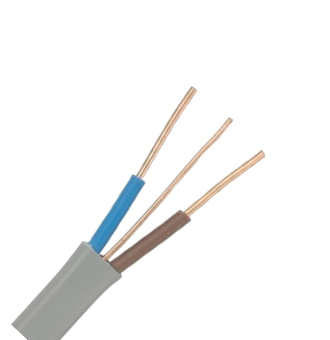

RMJT’s 624Y Twin & Earth PVC Cable complies with BS 6004 standards, with insulation made of PVC Compound, rated voltage range of 300/500 V, insulation and sheath colors can be customized upon request.
Rated voltage： 300/500 V
Conductor: IEC 60228 / BS6360 Class 1 or 2, stranded, Annealed copper wire
Insulation: PVC Compound
Insulation Color: Red and Black (or upon request)
Sheath (Jacket) Color: White/Black/Grey (or upon request)
Operating temperature: 0 to 70℃
Min bending radius: 6 x overall insulted diameter
Standard: BS 6004
| Cross Section mm² | Class of conductor | Diameter of conductor mm | Insulation Thickness mm | Sheath Thicknessmm | Size ECC conductor mm² | Nominal overall diameter mm | Max. Conductor Resistance of 20℃ Ohm/km | Mass of wire kg/km |
| 1.0 | 1 | 1.13 | 0.6 | 0.9 | 1.0 | 4.1 x 7.6 | 18.1 | 70 |
| 1.5 | 1 | 1.38 | 0.7 | 0.9 | 1.0 | 4x6×8.6 | 12.1 | 85 |
| 1.5 | 2 | 1.59 | 0.7 | 0.9 | 1.0 | 4.8 x 9.0 | 12.1 | 90 |
| 2.5 | 1 | 1.78 | 0.8 | 1 | 1.5 | 5.4x10.2 | 7.41 | 120 |
| 2.5 | 2 | 2.01 | 0.8 | 1 | 1.5 | 5.7x10.9 | 7.41 | 125 |
| 4 | 2 | 2.55 | 0.8 | 1 | 1.5 | 6.2x11.8 | 4.61 | 175 |
| 6 | 2 | 3.12 | 0.8 | 1.1 | 2.5 | 6.9x13.4 | 3.08 | 240 |
| 10 | 2 | 4.05 | 1.0 | 1.2 | 4.0 | 8.5x17.2 | 1.83 | 390 |
| 16 | 2 | 4.80 | 1.0 | 1.3 | 6.0 | 9.4x19.4 | 1.15 | 560 |
Able to remain resilient in temperatures as low as -40°C, 624Y Twin & Earth PVC Cable BS6004 is particularly suitable for AC and DC power supplies on telecommunication industry equipment such as switches and power supply applications where flexibility is required.
