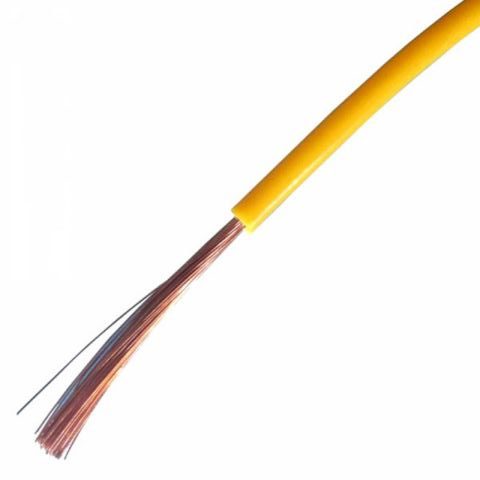

LSHF Compound Insulated Flexible Wires, BS Standard———H05Z-K、H07Z-K

Application

A flexible cable for fixed and protected installations. It is highly recommended for use in pipes or ducts and internal wiring of appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.

Standard

BS 7211

Structure

Rated voltage： 300/500V, 450/750V
Conductor: BS 6360 Class 5, stranded annealed copper wire
Insulation: EL 5 Low Smoke Halogen Free Thermosetting Compound
Insulation Color: Red, yellow, blue, black, green, white, purple, gray, orange, pink
Operating temperature: 0 to 90℃
Min bending radius: 4 x overall insulted diameter

Technical Parameter
